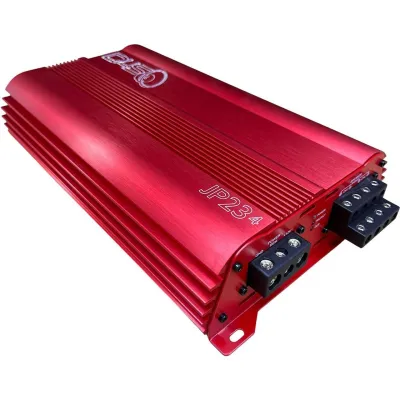

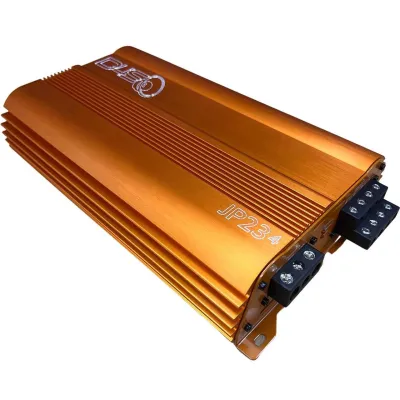

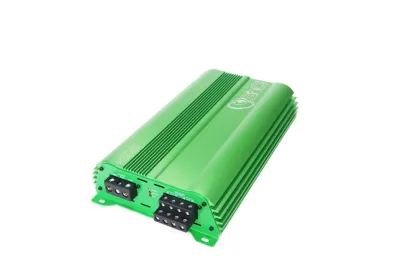

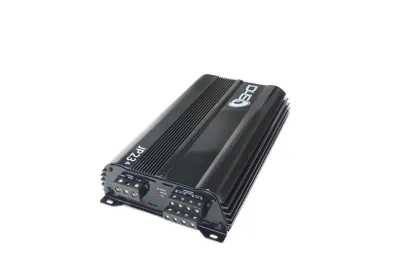

JP234 - 4 Channel Amplifier Features:

• FULL RANGE DIGITAL MULTI-CHANNEL AMPLIFIER

• STABLE INTO 2OHM STEREO OR 4OHM BRIDGED

• HIGH SPEED MOSFET POWER SUPPLY

• VARIABLE HIGH PASS FILTER

• VARIABLE LOW PASS FILTER

• CROSSOVER MULTIPLY X10

• BAND PASS FILTER CAPABLE

• Operating voltage : 9 to 16 Volts

• CLASS: D

• 4 WAY PROTECTION CIRCUITS

• Signal to Noise Ratio 95db <

• Fuse Rating 120A

3rd Party Independent Testing Results: Big D Wiz with SMD Amplifier Dyno

• 4 ohms at 14.4v : 334W RMS - CERTIFIED

• 2 ohms at 14.4v : 425W RMS = CERTFIFIED

• BRIDGED AT 2 OHMS : 678w RMS - CERTIFIED

OUR RATINGS: ( WE RATE POWER AT WORST CASE SCENARIO, THERE IS ALWAYS MORE)

• RMS POWER: 334W x 4 @ 14.4v - 2 ohms

• RMS POWER: 234W x 4 @ 14.4v - 4 ohms

• BRIDGE POWER: Range 640 - 740w x 2  '

Inputs and Dimensions

• 4 GA input on Power Wire

• 8 GA input for Speaker Wire

•  Dimensions: 11.8 x 7.4 x 2.24 inches
